Roger™ Earpiece System

The Roger Earpiece combines Phonak’s advanced digital audio technology with an ultra-small, discrete shape. This makes the receiver virtually invisible to cameras or an audience. It’s used without a belt pack or cables. The Roger Earpiece can be used all day long thanks to its light weight of 1.3 g and long battery life.

Discreet communication systems make your appearances on stage, television or in live programs even better. The Phonak Roger Earpiece in-ear receiver ensures maximum wearing comfort, is almost invisible to the audience and guarantees optimal quality when transmitting producer’s instructions and interview questions.

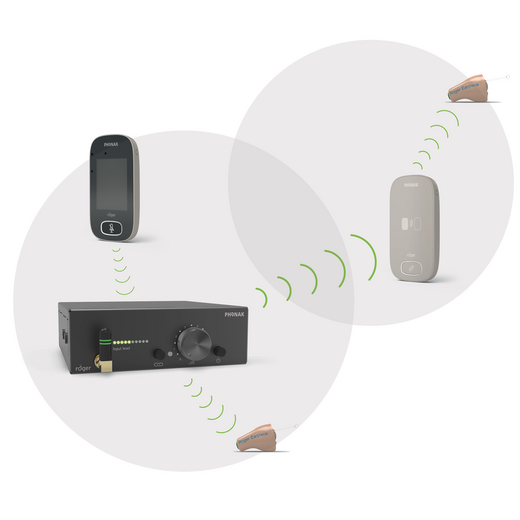

With the 2.4 Ghz protocol for wireless connections developed by Phonak, the Phonak Roger Earpiece System is easy to set up and even easier to use, thanks to the plug-and-play configuration. Aside from the earpiece, Phonak offers the Roger BaseStation, the Roger Touchscreen Mic, the Roger Multimedia Hub and Roger Repeater for unlimited flexibility, so as to provide a comprehensive system for studio professionals.

Why Roger Studio?

The Roger Earpiece in-ear receiver ensures maximum comfort, is practically invisible to the audience and guarantees optimal quality.

  • Wireless
    Wireless receiver – no cables or belt packs required.
  • Virtually invisible
    The micro size Roger Earpiece has a snug fit inside the ear canal and is basically invisible in front of a camera or a live audience.
  • Transmitter flexibility
    Roger Earpiece can be used both with the stationary Roger BaseStation and/or the mobile Roger Touchscreen Mic giving you the full flexibility for your production.
  • Speech clarity
    Despite the small size, the Roger Earpiece delivers an incredible sound quality. A large frequency bandwidth and up to 100db SPL output will ensure that you will not miss a clue.


Wireless receiver

  • Micro size Earpiece: 18 mm length – basically invisible
  • Ear specific form factor
  • Light weight: 1.3 g (incl. battery)
  • Exceptional sound quality
  • Max output level: 100 dB SPL
  • Unlimited number of Earpieces can be connected in one network
  • Easy handling and cleaning
  • Battery Life: > 20 h (size 10 battery)
  • Out-of-range beep

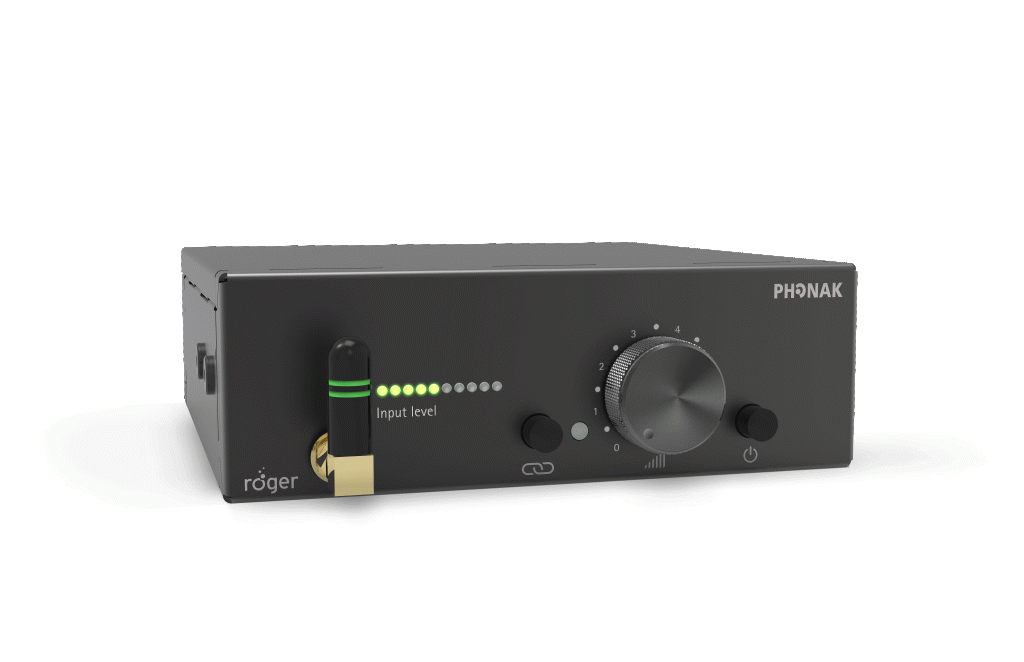

Stationary transmitter

  • License free 2.4 GHz transmission
  • Adaptive automatic frequency hopping
  • Balanced audio in (XLR or 6.3)
  • Audio input graphical display
  • Volume control: –14 to +12 dB
  • Bandwidth: 100–7200 Hz
  • Transmission range: 15–40 m (depending on environment)
  • Rack and wall mount included
  • Weight: 488 g
  • Housing dimensions: 132 x 132 x 44 mm

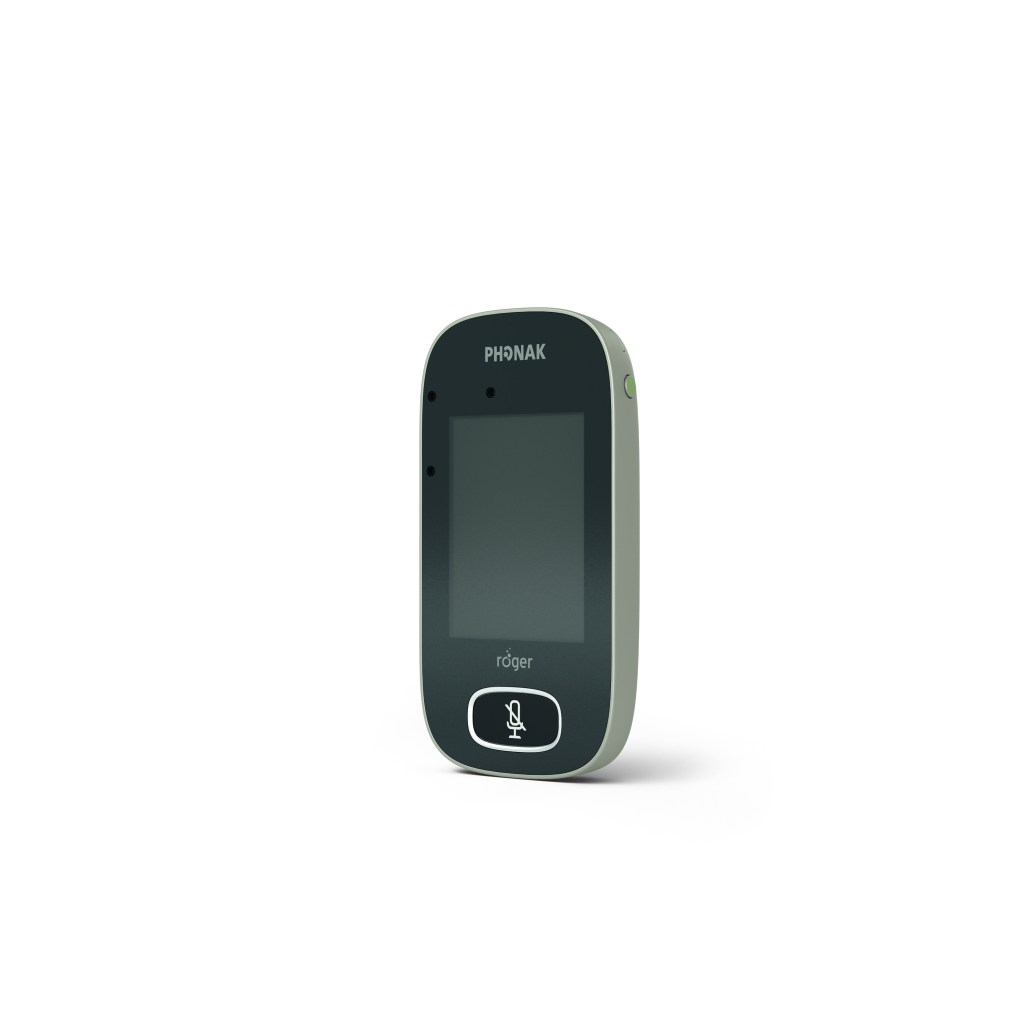

Touchscreen Mic

Mobile transmitter

  • Individual volume control function
  • Naming of Roger Earpiece (read/write)
  • License free 2.4 GHz transmission
  • Built-in handheld microphone
  • Touchscreen menu steering
  • Operating time: 10 h
  • Transmission range: 15–40 m (depending on environment)
  • Rechargeable lithium polymer battery
  • Weight: 94 g
  • Dimensions: 104 x 55 x 16 mm


Range Extender

  • Unlimited range extension
  • Integrated rechargeable battery
  • Operates standalone or permanently powered
  • Indicator lights
  • Fixing bracket and power supply included
  • Micro-USB socket
  • Easy wall mounting
  • ¼-20 tripod mount
  • Easy snap-in/out
  • Power supply cable retention

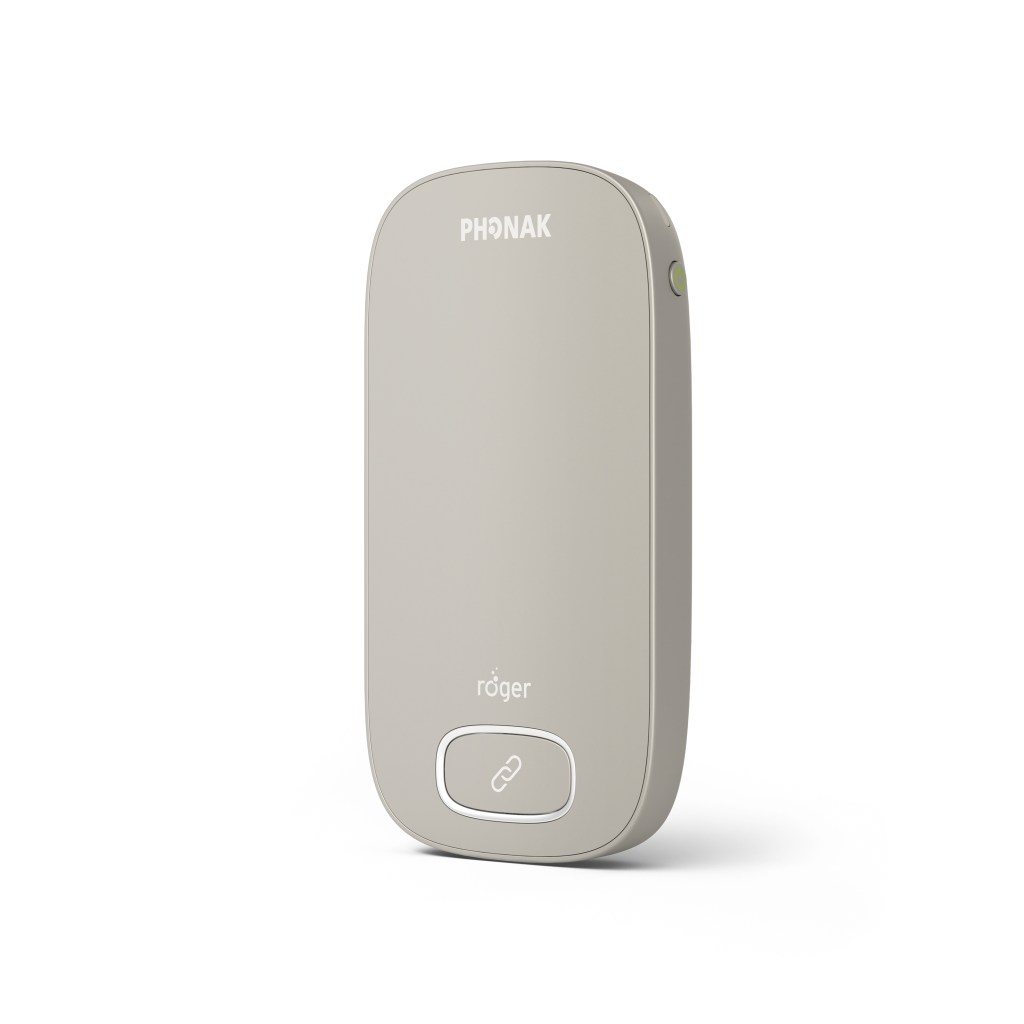

Multimedia Hub

Mobile Transmitter

  • License free 2.4 GHz transmission (Standalone or in MultiTalker Network as secondary)
  • Transmission as secondary in a cloned Network
  • Interface to UHF In ear monitoring system
  • 3.5 mm jack input
  • Connect button and indicator lights
  • Operating time: 10 hours
  • Transmission range: 15–40 m (depending on environment)
  • No Repeater usage in standalone mode
  • Rechargeable lithium polymer battery
  • Incl. Power supply 100-240V, 5V/1A and USB-microUSB cable
  • Weight: 120 g
  • Dimensions: 104 x 55 x 16 mm
