Profilo Nano
The Profilo Nano is one of Phonak’s smallest, 100% interference-free in-ear receivers. Phonak’s transductive loop technology is the only analog transmission technology that guarantees wearers of in-ear receivers 100% interference-free communication.
The crackling and hissing in the ear caused by electromagnetic interference (EMI) from alarm systems, vehicles and other electronic circuits can quickly lead to unclear communication and, in the worst case, can cause undercover investigations to fail. Similarly, failure can also result from a large and obvious earpiece being spotted by a surveillance target.

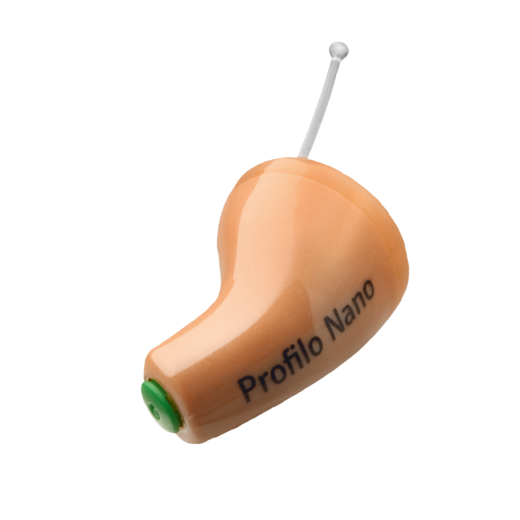

Profilo Nano by Phonak is our smallest in-ear receiver for covert communication. Thanks to its transductive loop technology, it’s completely immune to electromagnetic interference, ensuring you won’t be noticed or miss any transmissions.
- Smallest in-ear receiver
- Absolutely immune to electromagnetic interference
- Crystal-clear sound
- Selection of PTTs and induction loops
Profilo Nano headsets are compatible with a wide range of professional radios (including the latest TETRA models from Motorola, Sepura and Hytera). Phonak’s in-ear receivers are the result of decades of hearing research and experience. That’s why thousands of professional users around the world trust us.
Technical Characteristics
| Length / width / weigh | 16.4 mm / 9.7–10.9 mm / 1.3 g (including battery) |
| Interference blocker | Transductor including EMI shield |
| Type of receiver | digital with DSP modulation and processing |
| Available colors | Beige/dark brown |
| Max. sound pressure level, automatically limited | 100 dB(A) SPL* |
| Frequency band | 200 Hz – 5000 Hz |
| Background noise filter | Soft squelch |
| Battery type / average life | Zinc-Air, size 10 / 80 hrs. |
| End-of-battery-life warning | 3 x 2 beeps |
| Temperature range (storage) | -20°C to +60°C |
| Temperature range (operation) | -10°C to +60°C |
| Microphone (integrated in the transductive loop) | omnidirectional electret microphone |
| – frequency band | 101 Hz – 10 kHz |
| – Sensitivity at 1 Hz (dB re 1V / 1PA) | -34.0 + / -3 dB |
Wiring
The Profilo Nano system is available with different wiring kits.

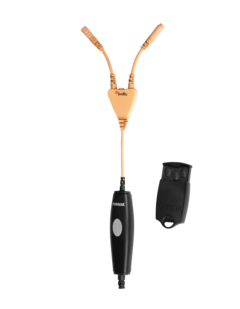

Profilo WL-Kit AC
With this transduction kit, communication is controlled via a PTT button in the form of a key ring. In addition, the junction box contains an integrated PTT button

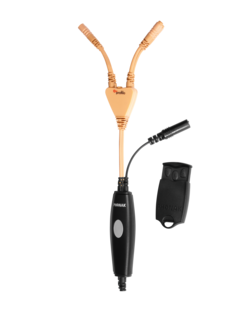

Profilo WL-Kit AC 3.5
Extension of the WL Kit by adding a 3.5-mm stereo jack. With this transduction kit, communication is controlled via a PTT button in the form of a key ring. In addition, the junction box contains an integrated PTT button.
